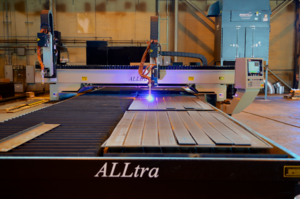

PG-30 Heavy Duty Industrial Cutting Machine



ALLtra PG-30 Series Heavy Duty Industrial Cutting Machines

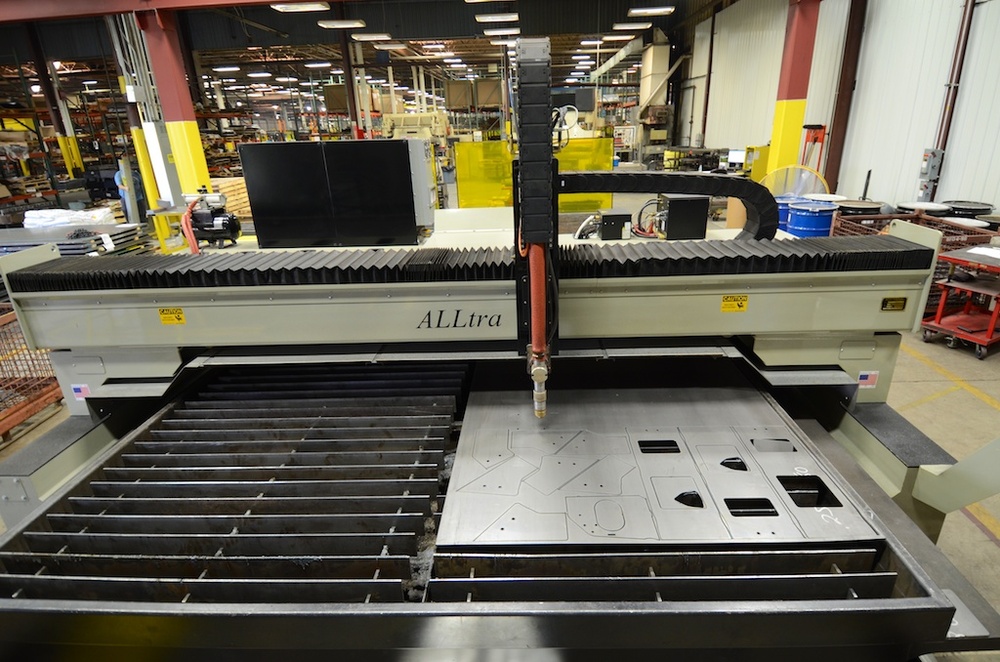

The PG30 Series Gantry Cutting Machine provides the ultimate solution to a wide variety of cutting widths and lengths.  This is a heavy-duty industrial cutting machine designed and manufactured with heavy duty manufacturing in mind.  With the flexibility for configurations of up to 12 self driven oxy fuel stations or up to four plasma bevel stations, the PG30 can also accommodate a number of different marking and other secondary operations as well.  The PG30 provides solutions for cutting and marking on cutting widths from 10’ to 30’.

PG-30 Heavy Duty Industrial Cutting Machine

ALLtra Construction

Even at a glance, the quality and durability of this industrial grade machine is evident.  With 1/2" thick reinforced carbon steel beam machined to the tightest tolerances in our industry at our facility.  The PG-30 includes features that competitors offer only as expensive options.  Covered linear ways, gantry heat and splatter shield and custom CNC and power-track positions all are part of the comprehensive system delivery that includes 'ground up' installation, all with the best service reputation in the industry.

ALLtra Technology

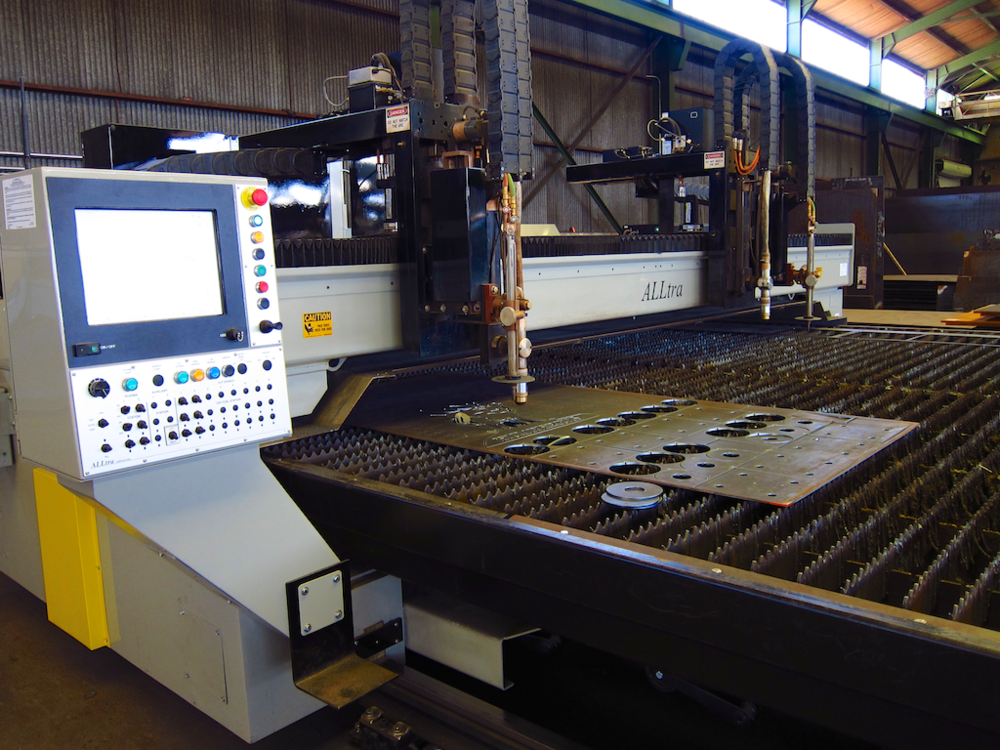

Setting the standard for innovative technology, ALLtra machines go beyond incorporating the leading cutting technologies of today with ALLtra Intelligent Design, service friendly ALLtra Diagnostics, and the fast response of ALLtra Service.  The ALLtra CNC provides a simple user interface with extraordinary power behind the panel.  Our software and hardware engineers improve the operation of the best cutting processes available with extremely precise tool positioning and faster positioning algorithms.

 Key Machine Features

• Large Beam and Protected Dual Linear Ways Ensure Accuracy and Durability
• Cutting Widths up to up to 30' (PG-30)
• Dual Side Drive with AC Brushless Servos and Precision Planetary Gearboxes
• Heavy Duty Machined Rails with Tongue-in-Groove Assembly for Precise Alignment

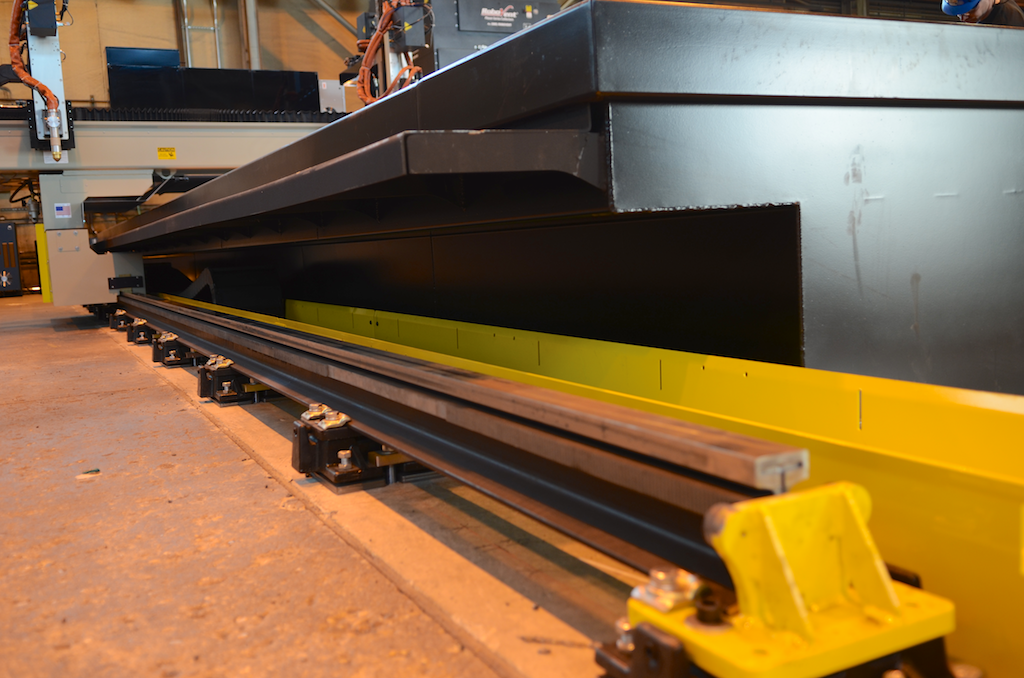

• Optional 'Tucked Rail' Designs for Reduced Floor Space and Improved Loading/Unloading
• Automatic Torch Spacing

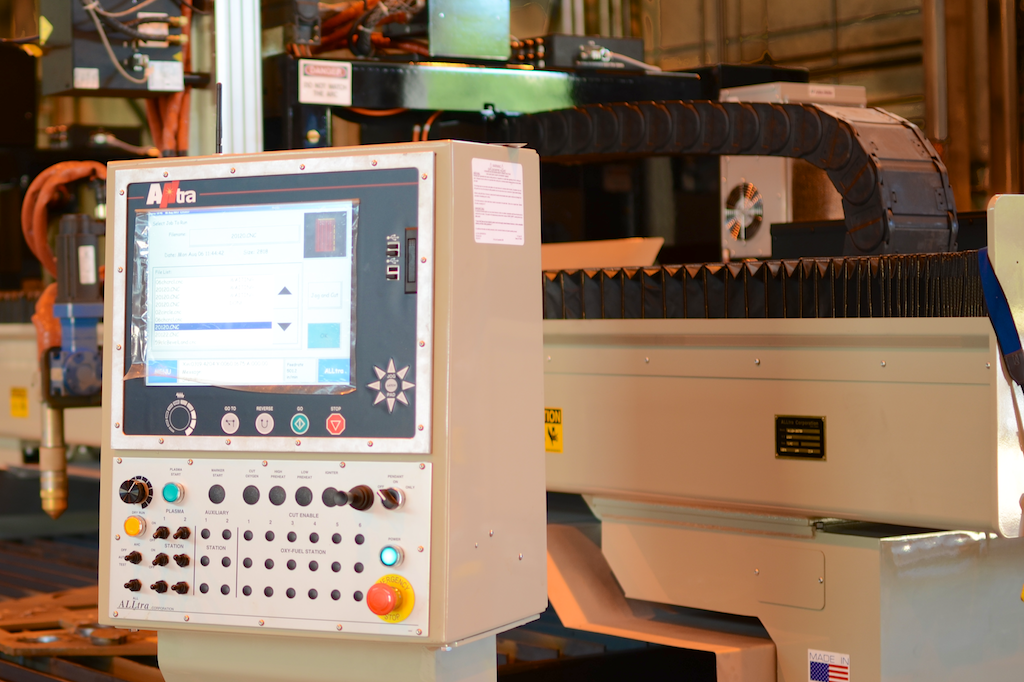

• ALLtra CNC



Cutting Process Stations

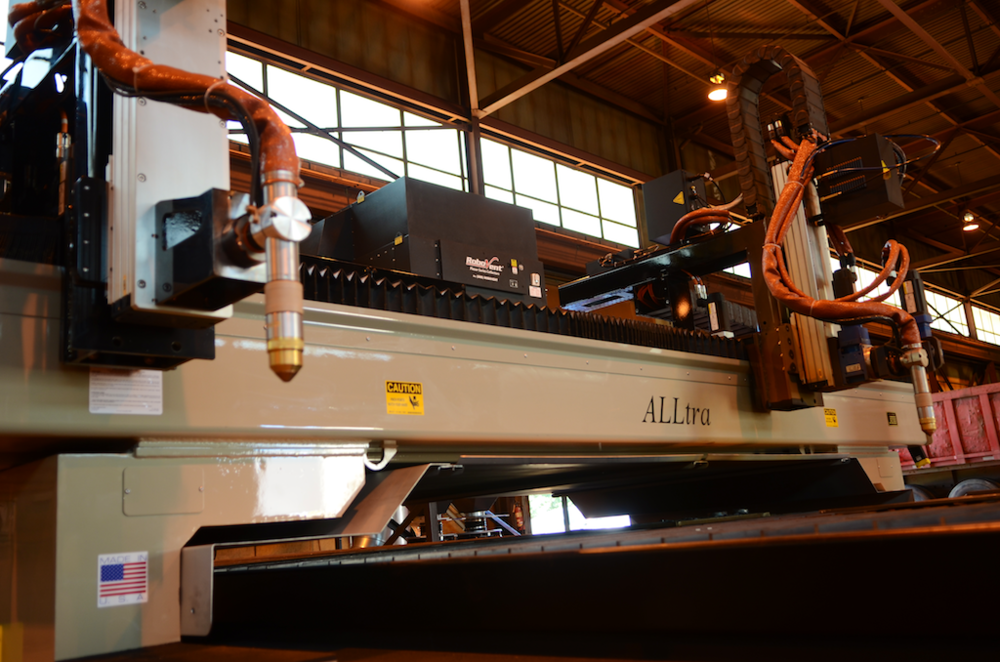

• Hypertherm HPR XD Series (licensed for Hypertherm TrueHole™ )

• Kaliburn Spirit 275/400
• Oxyfuel Cutting Stations
  • AutoHeight Control, AutoIgnition, CNC AutoGas Control
• Single Axis Bevel Stations for Straight Line Beveling

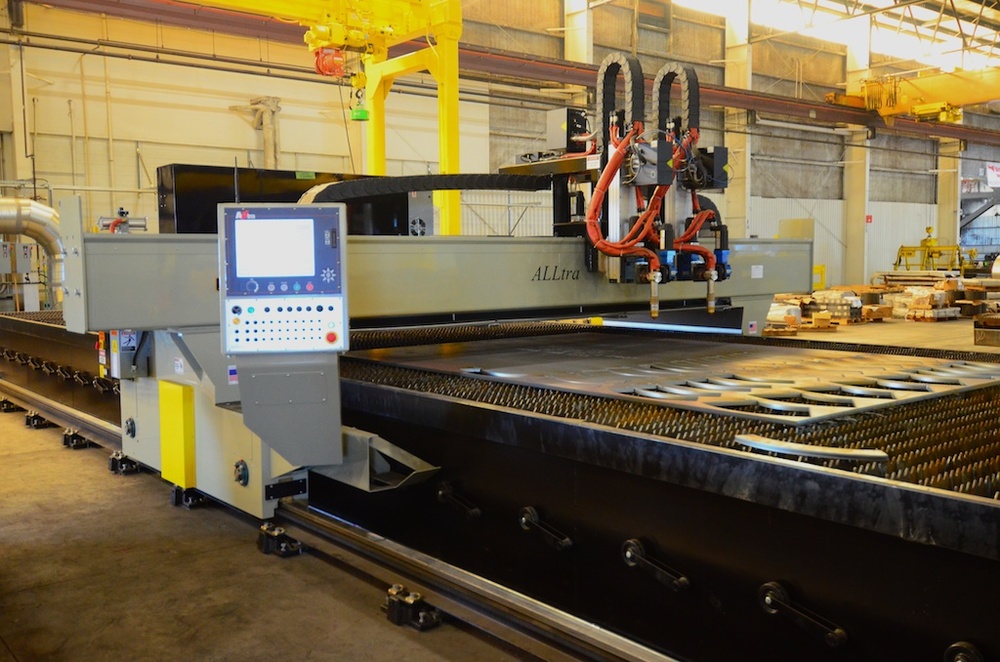

• Duel Axis Bevel Station for Four Sided Bevel
• Full Contour Bevel Stations
• ALLtra Cutting Stations



Marking Process Stations

• Punch or Scribe Marking
• Plasma Marking integrated to Plasma Cutting or Dedicated Marking Station
• Inkjet Marking Station

  • Supports Barcode Marking
  • Optional Full Contour Omnidirectional Marking
